XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL

Name: XRJF01A0D22010 Magnetic RJ45 Jack With 10100 Ethernet LPJ0011CNL
Brand: LINK-PP
Price: 1 USD

Buy cheap XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL product

Brand Name : LINK-PP

Model Number : XRJF-01A-0-D22-010

Certification : UL,ROHS,Reach,ISO

Place of Origin : China

MOQ : 50/500/1000

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4600K.PCS/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

part Number : XRJF-01A-0-D22-010

Specification : LPJ0011CNL

Cross&Datasheet : LPJ0011CNL

Apllication : 10/100 or 1000Base-T(x)

Original Munafactuer : LINK-PP

Mail Customer : Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics

Contact Now

XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL

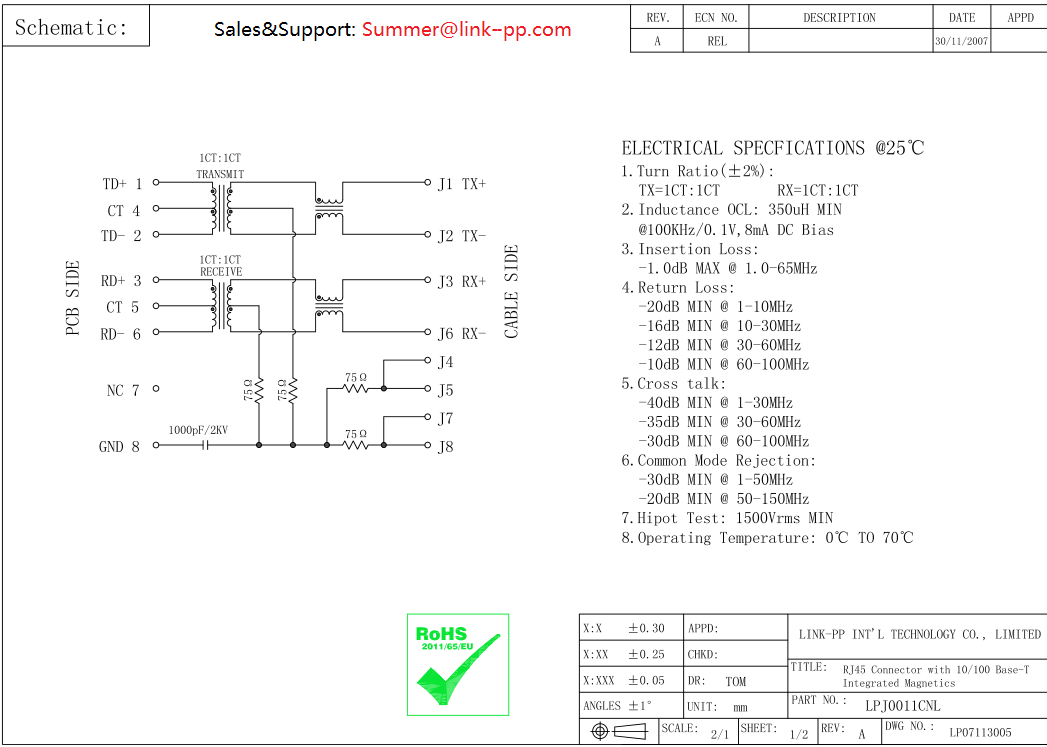

Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics ,Without LED,Tab Down,RoHS
LINK-PP Part Number	LPJ0011CNL
X multiple Part Number	XRJF-01A-0-D22-010
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
Diodes	No
LED Option	without LEDs
Latch	TAB Down
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Package Height (Inches)	0.524
Package Height (mm)	13.30
Package Length (Inches)	0.837
Package Length (mm)	21.25
Package Width (Inches)	0.627
Package Width (mm)	15.93
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 BASE-T
Temperature	0 TO +70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL

Why Choose LINK-PP

Quality

World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.

Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .

Manufactured under strict controls.

ISO 9001:2008

UL Certification

Reach Cetitifaction

RoHS compliance

OEM Of TE(Tyco) For 9 Years

Active Environmental policy

Every module tested (not just batch tested)

Main Customers

Texas Instruments	INTEL	SAMSUNG	FLUKE	EKF	HUAWEI	IBM	CISCO
FLEXTRONICS	JABIL	Foxconn	CANON	Arduino	--	---	---

XRJF-01A-0-D22-010 Magnetic RJ45 Jack With 10/100 Ethernet LPJ0011CNL

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments

LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.

Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board

LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
