TE Connectivity 1840865-4 Mag45 Stacked 2x2 Port 10/100base-T WLED Ground Shield

Name: TE Connectivity 18408654 Mag45 Stacked 2x2 Port 10100baseT WLED Ground Shield
Brand: LINK-PP
Price: 0.11 USD

Buy cheap TE Connectivity 1840865-4 Mag45 Stacked 2x2 Port 10/100base-T WLED Ground Shield product

Brand Name : LINK-PP

Model Number : 1840865-4

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Midcom PN : 1840865-4

Made In China : SM-LPJ27003-9A4NL

Application : Industry Workgroup Switches

Shield : Shielded EMI

Port : 4 Ports Pcb Jack Side Entry

Hipot : 1500V

Contact Now

TE Connectivity 1840865-4 Mag45 Stacked 2x2 Port 10/100base-T WLED Ground Shield

Tyco 1840865-4

Trader Part Number

1840865-4

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ27003-9A4NL

Manufacturer

LINK-PP China

Description

Rj45 Stacked Connectors

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

1840865-4 Electrical Specification @25℃

1.Turns Ratio(±2%):
(P1-P3):(J1-J2)=1:1
(P4-P6):(J3-J6)=1:1
2.Inductance: 350uH Min
@0.1V,0.1MHz,8mA DC Bias
3.Insertion Loss:
0.1-100MHz:-1.2dB Max
4.Return Loss(dB Min):
1-30MHz:-18
30-80MHz:-12
5.Crosstalk(dB Typ):
1-100MHz:-40
6.Common to Mode Rejection:
30-100MHz:-35dB Min
7.Hipot: 1500Vrms
8.Operating Temperature: -40℃～+85℃.

TE Connectivity 1840865-4 Mag45 Stacked 2x2 Port 10/100base-T WLED Ground Shield

Product Tags:

stacked rj45 connectors

modular jacks rj45

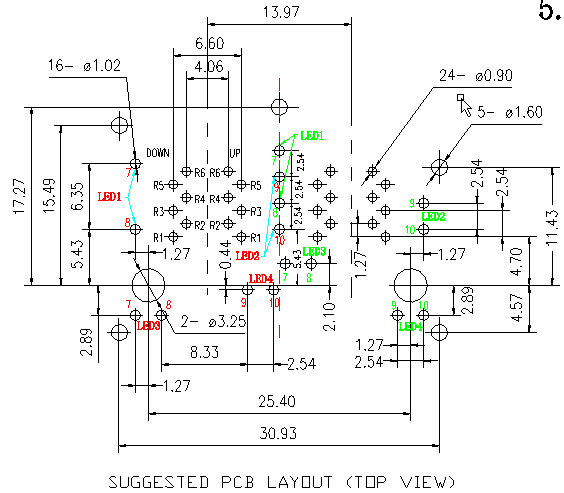

TE Connectivity 1840865-4 Mag45 Stacked 2x2 Port 10/100base-T WLED Ground Shield Images
