L3AH002-0 Single Port 100 Base - T 12 PIN LAN Filte Transformer

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPxxxxxx

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Original : L3AH002-0

Equivalent : LPxxxxxx

Speed : 100 Base-T

Transformer Type : Isolation and Data Interface

Operating Temperature : 0°C to +70°C

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Contact Now

L3AH002-0 Single Port 100 Base –T 12 PIN LAN Filte Transformer





Item Part Number L3AH002-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 100 BASE-T
Number of Ports Single Port
PIN number 12 PIN
Cores per Port 4
POE Ethernet(NON PoE )
Type DIP
Size 14 x 7.6 x 7
Pin Pitch 2.00
Circuits T+2C
Operating Temperature 0°C to +70°C
CMC Cable



You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly




L3AH002-0 Single Port 100 Base - T 12 PIN LAN Filte Transformer

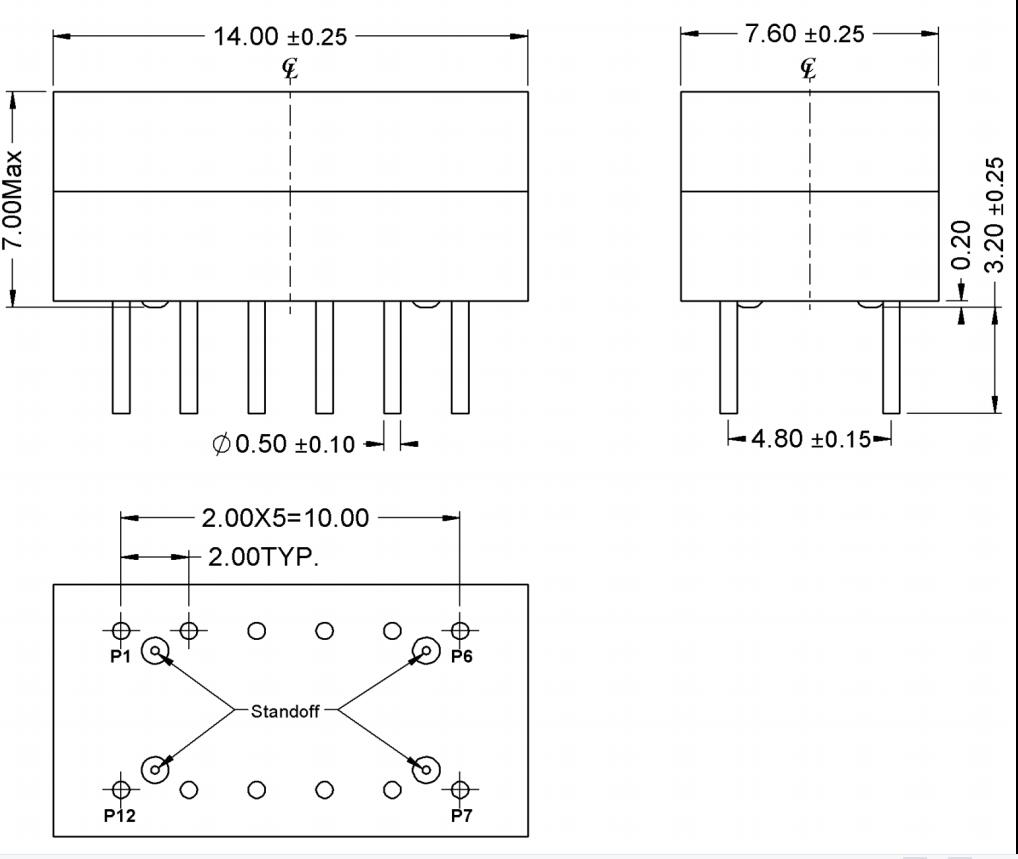

L3AH002-0 Single Port 100 Base –T 12 PIN LAN Filte Transformer Product Dimension:



L3AH002-0 Single Port 100 Base - T 12 PIN LAN Filte Transformer

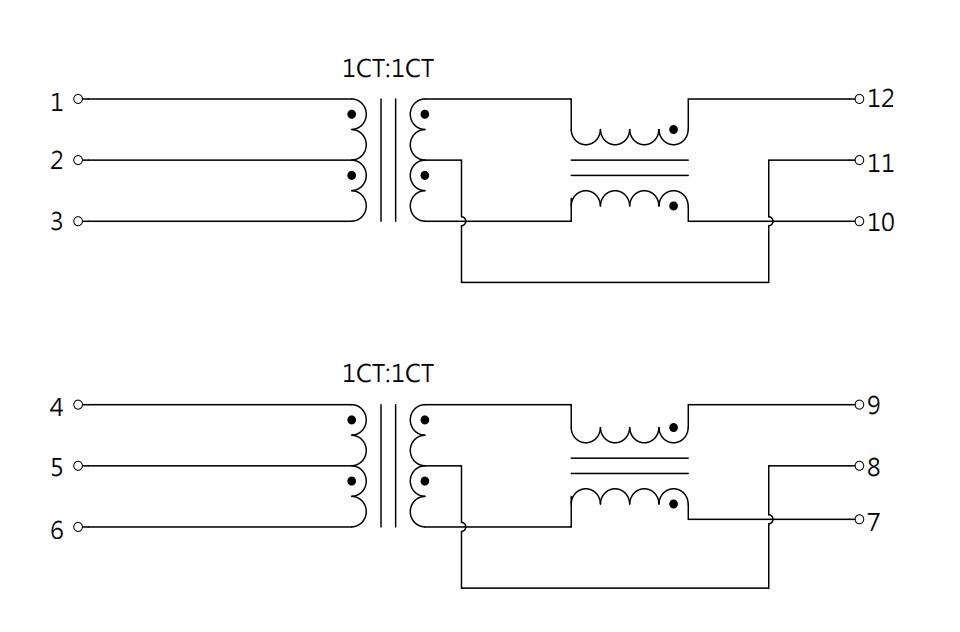

L3AH002-0 ELECTRICAL CHARACTERISTICS Schematic:

L3AH002-0 Single Port 100 Base - T 12 PIN LAN Filte Transformer





L3AH002-0 Electrical Specifications @25C
L3AH002-0 Single Port 100 Base - T 12 PIN LAN Filte Transformer





L3AH002-0​ SPECIFICATION

1 Designed for Ethermet 100 Base-T ,Single port applications.

2 Supports 2 pairs of category 5 UTP cable.

3 Cable interface for isolation and low common mode emissions.

4 Designed to meet IEEE 802.3 and ANSI X3263 standard.

5 Compliant with Halogen Free&RoHS requirements.

6 Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature :-25°C to +105°C

7 Packing Information
36 pcs finished goods per tube.
300 tubes( 10800 pcs finished goods) per master carton.







L3AH002-0 Similar Part Number :



L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
