2308171-6 ZQSFP+ Receptacle With Cage Ganged 2x2 Connector Included Lightpipe EMI Springs

Name: 23081716 ZQSFP Receptacle With Cage Ganged 2x2 Connector Included Lightpipe EMI Springs
Brand: LINK-PP
Price: 0.11 USD

Buy cheap 2308171-6 ZQSFP+ Receptacle With Cage Ganged 2x2 Connector Included Lightpipe EMI Springs product

Brand Name : LINK-PP

Certification : ISO 9001,ISO 14001,UL,SGS,REACH168

Place of Origin : Guangdong,China

MOQ : 10/100/25K

Price : $0.11-$35

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 350K/Month

Delivery Time : Stock

Packaging Details : 20/Tray

Original : 2308171-6

Connector Type : ZQSFP+

Part Status : Active

Connector Style : Receptacle with Cage, Ganged (2x2)

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More Than 20Years

Contact Now

2308171-6 ZQSFP+ Receptacle With Cage Ganged (2x2) Connector Included Lightpipe EMI Springs

2308171-6,ZQSFP+,Cage Assembly with Integrated Connector, 2 x 2, Internal/External EMI Springs, Included Lightpipe, Standard

Part Number	2308171-6
Manufacturer	LINK-PP
Part Status	Active
Connector Type	ZQSFP+
Connector Style	Receptacle with Cage, Ganged (2x2)
Number of Positions	152 (38 x 4)
Number of Ports	2X2 port
Number of Rear EONs per Port Column	0
Included Lightpipe	Yes
PCB Mounting Style	Through Hole - Press-Fit
Data Rate (Max) (Gb/s)	28
Features	EMI Shielded
Operating Temperature Range	-40 – 85 °C
PCB Thickness (Recommended)	3
Tail Length	2.2 mm [ .086 in ]
Cage Material	Nickel Silver Alloy
EMI Containment Feature Type	Elastomeric Gasket
Circuit Application	Signal

You may be interesting in below considerate supports:

Datasheet	Request by email to	contact us
Samples	Free	For Free samples delivery, pls advise below infomation For Shipping
		Company Name
		Delivery Address
		Telephone Number
		Contact Person
		UPS/DHL/Fedex/TNT A.C	(If available)
Trial Production	U/P(USD)	$0.09-$1.85	We can ship out parts directly to your warehouse/door to door
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
Mass Production	U/P(USD)	Stock
	L/T(Weeks)	Stock
	Shipping Term	DAP/CIF/FCA/FOB
	Lifecycel	More than 20 years	You can use our parts for long term consideration
	Reject Ratio	Zero Defective (100% Tested)
Special Services	Accept customized service		Accept revised designing
Now you can contact us instantly

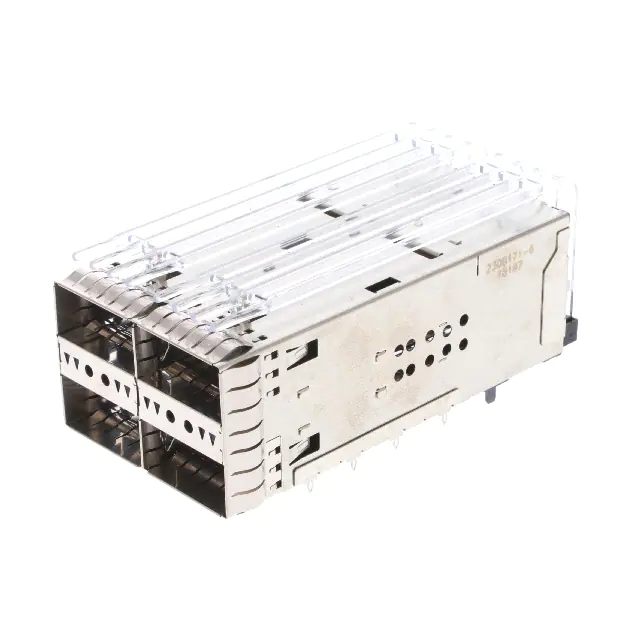

2308171-6 ZQSFP+ Receptacle With Cage Ganged (2x2) Connector :

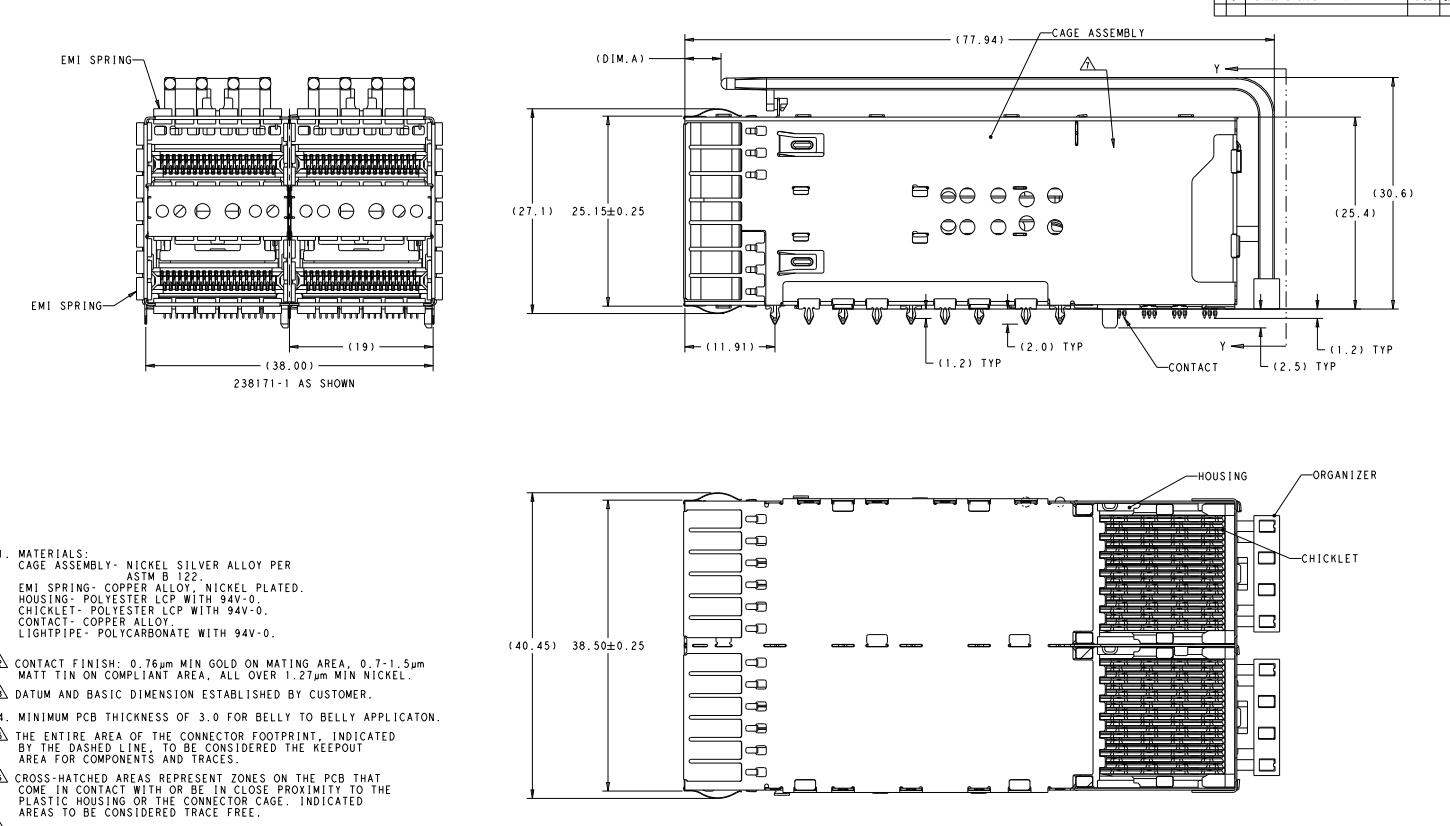

2308171-6 ZQSFP+ Receptacle With Cage Dimension:

2308171-6 ZQSFP+ Receptacle With Cage Ganged 2x2 Connector Included Lightpipe EMI Springs

2308171-6 Similar Part Number :

2170806-3	2-2170747-4	2170812-1
2289129-3	2173239-1	2227103-1
2170785-5	2057042-1	1-2308171-1
2308171-6	2007626-1	2007394-5
2308171-1	2170744-2	2198230-2

Is zQSFP+ the same as QSFP28?

QSFP28 can do 4x25G breakout connection, 2x50G breakout, or 1x100G depending on the transceiver used.

While QSFP+ supports the data rate of 40G, 4 channels for transmitting and 4 channels for receiving, each lane

carrying 10G. QSFP+ can break out into 4x10G or 1x40G connection.
