1-2007492-8 SFP+ Cage Assembly with Integrated Connector
Material Specifications for 1-2007492-8 SFP+ Cage
♦ Contact Mating Area Plating Material: Gold or Gold Flash over Palladium Nickel, providing conductivity and corrosion resistance.
♦ Tail Plating Material: Tin for good solderability.
♦ Cage Material: Nickel Silver for its strength and durability.
♦ UL Flammability Rating: UL 94V-0 Rated meets safety standards.
♦ EMI Spring: Made from copper alloy, providing efficient electromagnetic interference (EMI) shielding.
♦ Housing: Black LCP (Liquid Crystal Polymer) for high-temperature resistance.
♦ Chicklet: Black LCP, also UL 94V-0 rated.
♦ Light Pipe: Clear polycarbonate, enabling efficient light transmission for visual indicators.
♦ Insert Black LCP, UL 94V-0 rated.
♦ Contacts: Copper alloy for electrical conductivity and reliability.
| Part Number | 1-2007492-8 |
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Receptacle with Cage, Ganged (2x1) |
| Number of Ports | 2X1 port |
| Number of Positions | 40 |
| Included Lightpipe | No |
| Heat Sink Compatible | No |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 16 |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 1.5 mm [ .059 in ] |
| Tail Length | 3 mm [ .118 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | External Springs |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94V-0 |

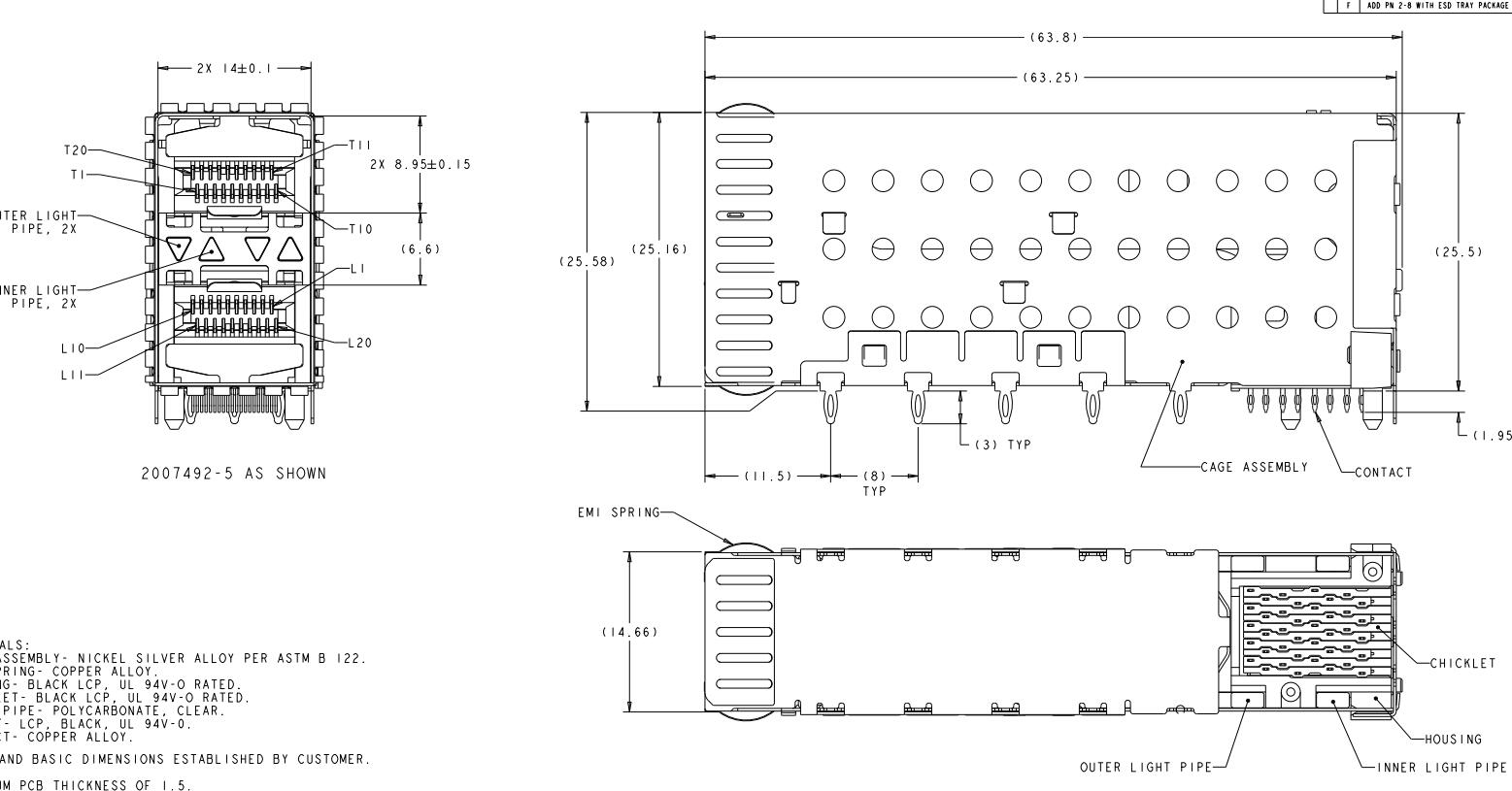

TE 1-2007492-8 SFP+ 2x1 Cage Details:
1-2007492-8 Similar Part Number :
| 2007625-1 | 2170790-3 | 4-2170808-2 |
| 1-2007492-8 | 2198325-2 | 2198339-2 |
| 1-2007562-5 | 2170745-3 | 2143330-1 |
| 2170745-1 | 2227670-2 | 2308171-8 |
| 2227671-3 | 2149730-4 | 2227249-3 |
Product Tags:
|
|

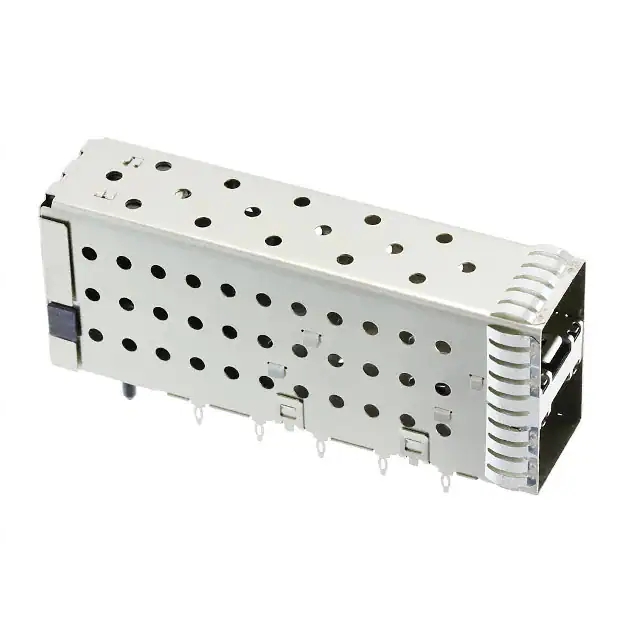

TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs Images
|
