UTG48C10 Dual Port LAN PoE Transformer LP84811NL Ethernet Magnetic

Name: UTG48C10 Dual Port LAN PoE Transformer LP84811NL Ethernet Magnetic
Brand: LINK-PP
Price: 0.08 USD

Buy cheap UTG48C10 Dual Port LAN PoE Transformer LP84811NL Ethernet Magnetic product

Brand Name : LINK-PP

Model Number : UTG48C10

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.08-$1.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 5KK/Month

Delivery Time : 3-5 days

Packaging Details : T&R

Transformer Type : Dual Port Transformer

Frequency Range : 1 MHz to 100 MHz

Application : 10/100/1000Mbps

Mounting : Surface Mount

Isolation Voltage : 1.5KV

PoE Function : Support

Contact Now

Dual Port 1000 BASE-T Transformer Modules Specifications:

Compatible Part Number	UTG48C10
LINK-PP Part Number	LP84811NL
Speed	10/100/1000 Base-T
Number of Ports	Dual Port
PoE Rating	PoE
Package	SMD
Operating Temperature	0℃ TO + 70℃
AutomDX	YES
Application	I/0 Controller Guard System
Configuration RX	T, C, S
Configuration TX	T, C, S
Construction	OPEN FRAME
Cores Per Port	16
PIN Number	48
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT
Insertion Loss	1-100MHz:-1.2dB Max
Return Loss	1-30MHz:-16dB Min 40MHz:-14dB Min 50MHz:-13dB Min 60-80MHz:-12dB Min
Crosstalk	30MHz:-45dB Min 60MHz:-40dB Min 100MHz:-35dB Min
Differential to Common Mode Rejection	30MHz:-43dB Min 60MHz:-37dB Min 100Mhz:-33dB Min
Isolation Voltage	1500Vrms MIN

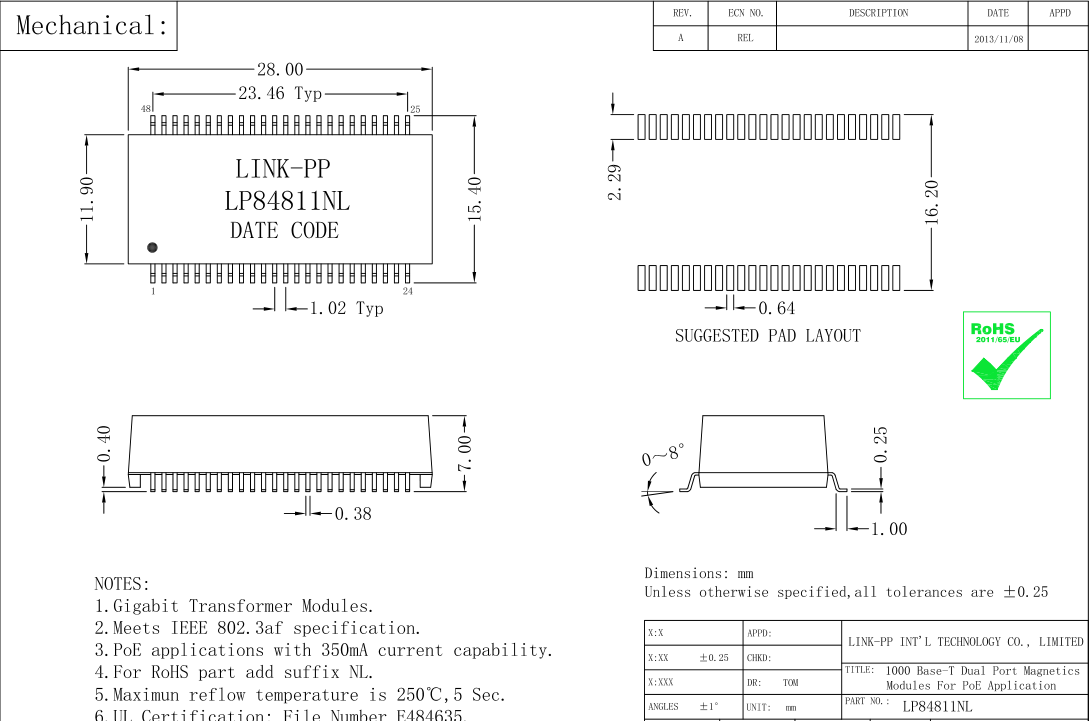

Ethernet Magnetic Transformer Datasheet:

UTG48C10 Dual Port LAN PoE Transformer LP84811NL Ethernet Magnetic

Why Choose LINK-PP?

1. Experience:

Over 20 years of expertise in manufacturing LAN transformers.
Free samples are available.
Fast delivery: 1-2 weeks.

2. Factory:

2,600+ workers.
60,000 square meters of production space across three factories.

3. Quality:

Lean production management.
100% testing (not just batch testing).
5-year quality guarantee.

4. Certification:

ISO 9001:2008, RoHS, CE, FCC compliance.
Committed to an active environmental policy.

5. R&D Capabilities:

OEM and design services are offered.
Custom product development and tooling.

6. Competitive Pricing and Service:

More competitive than brands like PULSE, TE, and Amphenol.
