0875-1AX1-BH Tab Up 1000 base-T Rj45 Integrated Jack 10 PIN G/Y Led

Product Categories
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0875-1AX1-BH Tab Up 1000 base-T Rj45 Integrated Jack 10 PIN G/Y Led

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LPJxxxxxx

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000

Price : OEM Price

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton

Original : 0875-1AX1-BH

Equivalent : LPJxxxxxx

Ethernet Aplly : 1000 Base-T

Samples : Free Available

File : PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters

Lifecycle : More than 20Years

Contact Now



0875-1AX1-BH Tab Up 1000 base-T Rj45 Integrated Jack 10 PIN G/Y Led





0875-1AX1-BH​ Detailed Information
LINK-PP Part Number LPJGxxxxxx
Part Number 0875-1AX1-BH
PoE Rating NO POE
Part Status Active
Speed 100/1000 BASE-T
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Cores per Port 8
LED Option Green/Yellow
Latch Tab up
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs WITH
Temperature -40 TO 85℃




You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

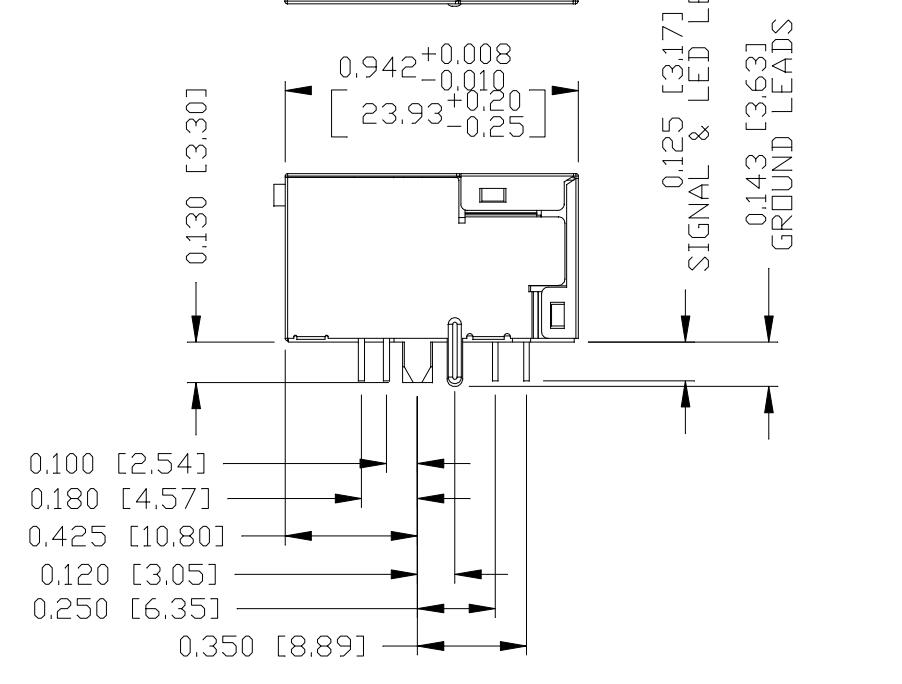

0875-1AX1-BH Mechanical Specification:

0875-1AX1-BH Tab Up 1000 base-T Rj45 Integrated Jack 10 PIN G/Y Led

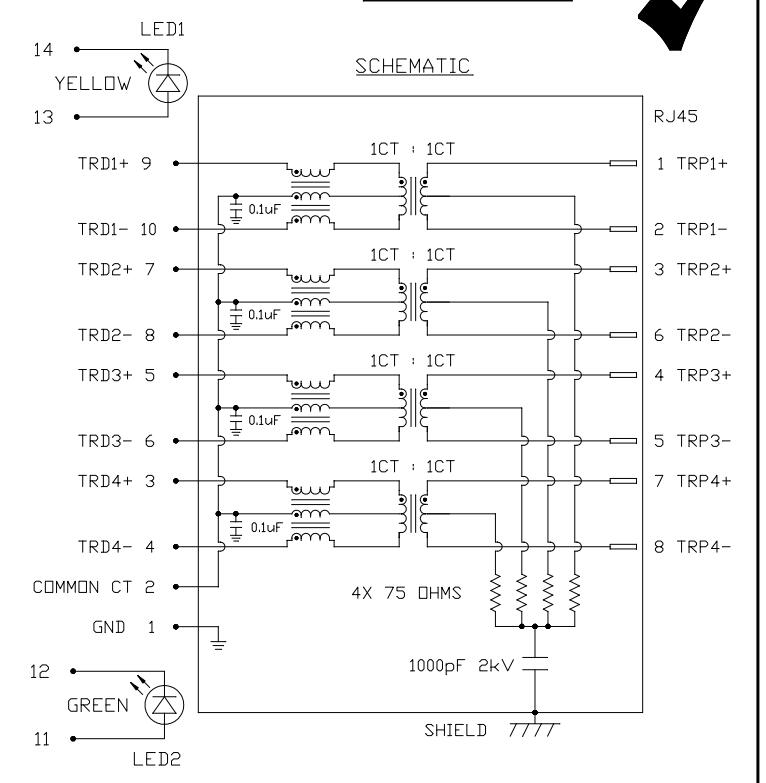

0875-1AX1-BH Rj45 Integrated Jack Electrical Schematic:
0875-1AX1-BH Tab Up 1000 base-T Rj45 Integrated Jack 10 PIN G/Y Led





0875-1AX1-BH Magnetic RJ45 Jack Description:
The 0875-1AX1-BH supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.

1.0875-1AX1-BH 10 PIN RJ45 Female Jack
2.0875-1AX1-BH 1000 Base-T Magnetic RJ45 Connector
3.0875-1AX1-BH 1x1 Port RJ45 MagJack




0875-1AX1-BH OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as network connector and lan magnetics or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

0875-1AX1-BH Tab Up 1000 base-T Rj45 Integrated Jack 10 PIN G/Y Led
