1-1840419-3 180 Degree RJ45 Female Jack For IP Cameras LPJD1011BENL

Brand Name : LINK-PP

Model Number : 1-1840419-3

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : In Stock

Packaging Details : Optional

P / N : 1-1840419-3

Cross P / N : LPJD1011BENL

Speed : 10/100BASE-T

Port : 1x1

LED Option : Y/G

Shielding : Shielded

EMI Tabs : No

Port Configuration : Vertical

Contact Now





1-1840419-3 180 Degree RJ45 Female Jack For IP Cameras LPJD1011BENL






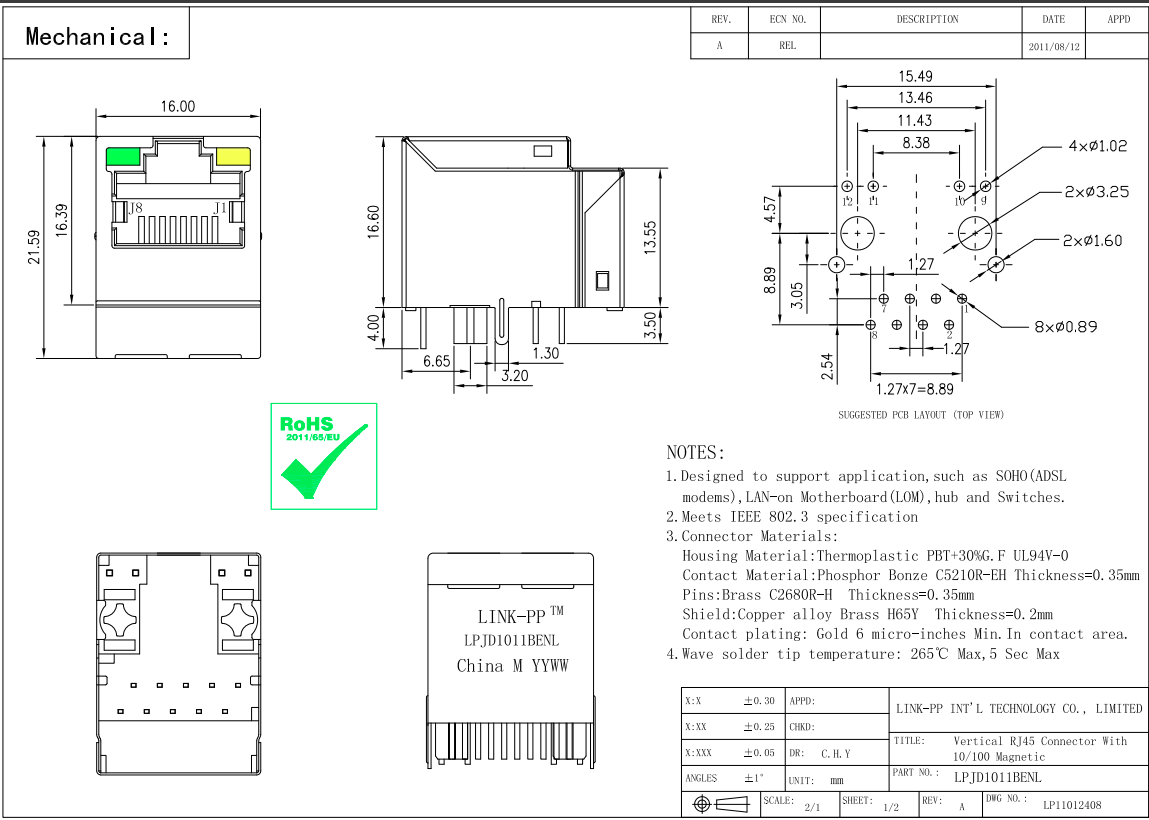

Quick Details:



Vertical Mount RJ45 MagJack 1-1840419-3 offers 10/100BASE-T Ethernet performance. These ICMs are backward compatible with existing Ethernet networks and are compatible with all major PHYs, including the latest current-mode and voltage-mode chips. Suitable applications include single-board motherboards, industrial PCs, printers, daughter cards, industrial controllers, and any applications requiring a vertical mount Ethernet connector, where board space is a premium. ​



Notes:

  1. Application Support

    Designed for use in networking applications such as:

    • SOHO (Small Office/Home Office) devices including ADSL modems

    • LAN-on-Motherboard (LOM) implementations

    • Ethernet hubs and switches

  2. Standards Compliance

    • Fully compliant with IEEE 802.3 Ethernet specification

  3. Connector Materials

    • Housing Material: Thermoplastic PBT + 30% Glass Fiber, UL94V-0 rated

    • Contact Material: Phosphor Bronze C5210R-EH, thickness = 0.35 mm

    • Pin Material: Brass C2680R-H, thickness = 0.35 mm

    • Shield: Copper alloy (Brass H65Y), thickness = 0.2 mm

    • Contact Plating: Gold plating ≥ 6 micro-inches in contact area

  4. Soldering Conditions

    • Suitable for wave soldering

    • Maximum solder tip temperature: 265°C

    • Maximum duration: 5 seconds




Specifications



Parameter Specification
Turn Ratio (±2%) TX = 1CT:1CT, RX = 1CT:1CT
Inductance (OCL) 350 μH Min @ 100kHz, 0.1V, 8mA DC Bias
Insertion Loss -1.1 dB Max @ 0.1–100 MHz
Return Loss

-18 dB Min @ 0.5–30 MHz

-15.5 dB Min @ 40 MHz

-13.6 dB Min @ 50 MHz

-12 dB Min @ 60–80 MHz

Crosstalk -40 dB Typ @ 0.1–100 MHz
Common Mode Rejection

-50 dB Typ @ 0.1–30 MHz

-40 dB Typ @ 30–60 MHz

-35 dB Typ @ 60–100 MHz

Hi-Pot Test Voltage 1500 Vrms Min
Operating Temperature 0°C to +70°C



Part Number 1-1840419-3
Number of Ports 1x1
Speed 10/100BASE-T
Height Profile Standard
LED Yes
LED Type Yellow / Green (Y/G)
Port Configuration Vertical
EMI Tabs No
Mounting Type Through-Hole Mount
RoHS Compliance Yes






LPJD1011BENL Datasheet:
