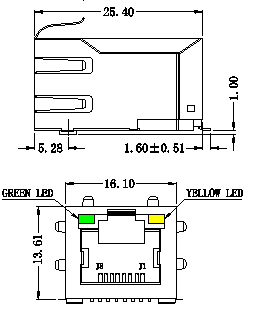

MAGJACK SMT HR961160C 10/100Base-T With LED LPJ3011ABNL Rj45 SMT Connector

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : HR961160C

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 770

Price : Supportive

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 110PCS/ Reel,7Reels=770PCS=10KG=35.5*35.5*35cm/Carton

Specification : HR961160C

Update PN : LPJ3011ABNL

Family : Surface Rj45

Apllication : 10/100Base-T

Original Munafactuer : LINK-PP

Samples : Free Available

Contact Now

MAGJACK SMT HR961160C 10/100Base-T With LED LPJ3011ABNL Rj45 SMT Connector


Part Number
Made In China
Manufacturer
Description
 HR961160C
SM-LPJ3011ABNL
LINK-PP
1xrj45,10/100Mbps Magnetics,W/LED POE 802.3af
Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Rj45
10/100Mbps
SMT

Orientation
Termination
LED Color
Shielding
90° Angle (Right)
Solder
G&Y
Shielded ,EMI-Finger

HR961160C Electrical Specifications @25℃
1.Turns Ratio(± 2%):
  TX=1CT:1CT      RX=1CT:1CT
2.OCL: 350uH Min
  @100KHz,100mV,8mA bias current
3.Insertion Loss:
  1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
  1-10MHz:-20      30MHz:-16
  60-80MHz:-12
5.Crosstalk(dB Min):
  1-10MHz:-40      30-60MHz:-35
  60-100MHz:-30
6.Common Mode Rejection(dB Min):
  1-50MHz:-30      50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: -40℃～+85℃
LPJ3005ABNL
LPJ3026BBNL
LPJ3011ABNL
LPJ3095ABNL
LPJ3006ABNL
LPJ3091A42NL
LPJ3011BBNL
LPJ3163A4NL
LPJ3006BBNL
LPJ3095-8ABNL
LPJ3014AFNL
LPJ37402AHNL
LPJ3007AANL
LPJ3095-8ABNL
LPJ3014AFNL
LPJ37402AHNL
LPJ3026ABNL
LPJ3094ABNL
LPJ3014AFNL
LPJ3190AENL
