J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL

Name: J0G0001NL 1x1 TabUp Low Profile RJ45 Connector LPJK7003A98NL
Brand: LINK-PP
Price: 0.08 USD

Brand Name : LINK-PP

Model Number : J0G-0001NL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.08-$1.79

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 2800K-PCS/Month

Delivery Time : Stock

Packaging Details : 60pcs/tray,or Reel Package

Part Number : J0G-0001NL

LATCH : UP

Mounting : THT

NUMBER OF PORTS : 1X1

LED OPTION : GREEN/ORANGE & YELLOW

POE RATING : NON-POE

SPEED : 1000BASE-T

TEMPERATURE : 0 TO 70℃

Contact Now

J0G-0001NL Low-Profile 1x1 Tab-up RJ45 Conennctor Support 10/100/1000Base-T

Part Number	LINK-PP Cross P/N	Manufacturer	Description
J0G-0001NL	LPJK7003A98NL	LINK-PP	J0G-0001NL Low-Profile PulseJack
Series	Number of Ports	Applications	Mounting Type
Integrated Magnetics Connector	single port (1x1)	10/100/1000 Mbps	Thru-Hole

Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	Green, Orange - Yellow	Shielded, EMI Finger

ELECTRICAL SPECIFICATIONS: 1. TURN RATIO @100KHz: (P2~P3):(J1~J2)= 1:1±5% (P4~P5):(J3~J6)= 1:1±5% (P6~P7):(J4~J5)= 1:1±5% (P8~P9):(J7~J8)= 1:1+5% 2. PRIMARY INDUCTANCE: 350UH MIN @100KHZ, 0.1V 8mA DC BIAS 3. DC RESISTANCE: 1.2 OHMS MAX 4. INSERTION LOSS: 1-125MHZ: -1.0dB TYP 5. RETURN LOSS: 1-40MHZ: -16dB MIN 40-60MHZ: -12dB MIN 6. CROSS TALK: 60-80MHz: -10dB MIN 80-100MHZ: -8dB MIN 1-100MHZ: -30dB MIN 7. COMMON TO COMMON MODE ATTENUATION: 1-100MHz: -30dB MIN 8. ISOLATION: PHY SIDE TO LINE SIDE: 2250VDC

J0G-0001NL PulseJack Description:

J0G-0001NL 100/1000Base-T RJ45 single port (1x1) Tab-UP integrated magnetic connector is designed to support applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications.

Compliant with IEEE 802.3 standard
350µH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
Low height and small footprint to minimize board space
RoHS peak wave solder temperature rating 260°C

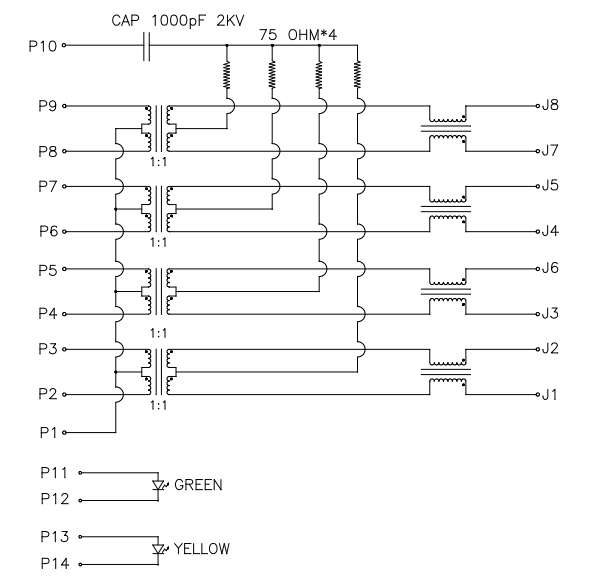

J0G-0001NL Datasheet SCHEMATIC
