1-1840472-4 Gigabit Vertical RJ45 Socket 1X1 Modular Jack,Top Entry Shielded w/LED

LINK-PP INT'L TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1-1840472-4 Gigabit Vertical RJ45 Socket 1X1 Modular Jack,Top Entry Shielded w/LED

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : 1-1840472-4

Certification : UL,ROHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 60 pcs/ tray,22 tray /carton/37*30*30 cm, 10 KGS/1320 pcs/ carton

Part No : 1-1840472-4

Number of Ports : 1X1

Connector Type : Vertical RJ45 Jack

Speed : 10/100/1000BASE-T

Mounting : Through Hole

Orientation : 180~ Angle (Straight)

LED : GY/GY

Samples : Free

Contact Now

1-1840472-4 vertical RJ45 connector with integrated 10/100 Base-T magnetics





Parameter
Specification
General Specifications

Manufacturer
LINK-PP
Part Number
1-1840472-4
Product Type
RJ45 Jack with Integrated Magnetics
Electrical Specifications

Data Rate
10/100/1000 Mbps Ethernet
Dielectric Withstanding
2250V DC
Contact Current Rating
1.5A (maximum)
EMI Protection
Enhanced EMI
PoE Support
IEEE 802.3at standard
Mechanical Specifications

Mounting Type
Through-hole (THT)
Orientation
Vertical (90°)
Port Configuration
Single port (1x1)
LED Indicators
Yes
Housing Material
High-grade LCP (Liquid Crystal Polymer)
Contact Material
Phosphor Bronze
Contact Plating
0.76μm (30μin) Gold over 1.27μm (50μin) Nickel
Durability
Minimum 750 mating cycles
Solder Pin/Shield Length
Approximately 1.9mm
Environmental Specifications

Operating Temperature
-40°C to +85°C
Storage Temperature
-40°C to +85°C
Reflow Solder Process
Supports 260°C
Moisture Sensitivity Level
MSL 1
Compliance

Flammability Rating
UL94-V0
Ethernet Standards
IEEE 802.3
Environmental Compliance
RoHS Compliant
Applications

Recommended Uses
Industrial Communications, Industrial Machinery, Production Equipment, Automated Test Equipment, Factory Automation, Process Control





Manufacturer:

Guangdong China LINK-PP

RoHS:

2011/65/EU

Product:

Modular Jacks

UL Certification:

File Number E484635

USOC Codes:

RJ45

Number of Positions:

8 Pos  14 Terminal

Number of Ports:

1 Port

Spec Manufacturing According

1-1840472-4

Mounting Style:

Panel

Termination Style:

Through Hole

Shielding:

Shielded

Voltage Rating:

1.5 kV

Color:

Silver

Series:

Top Entry Magnetic RJ45 without LEDs

Packaging:

Tube

Brand:

LINK-PP

Contact Material:

Phosphor Bronze

Pin to Pin Analogue

LPJD4711B4NL Compatible Alternate

Contact Plating:

Gold

Gender:

Female

Housing Material:

Polyester

Mounting Angle:

Straight

Number of Rows:

1 Row

Pitch:

2.54 mm

Factory Pack Quantity:

54 pieces

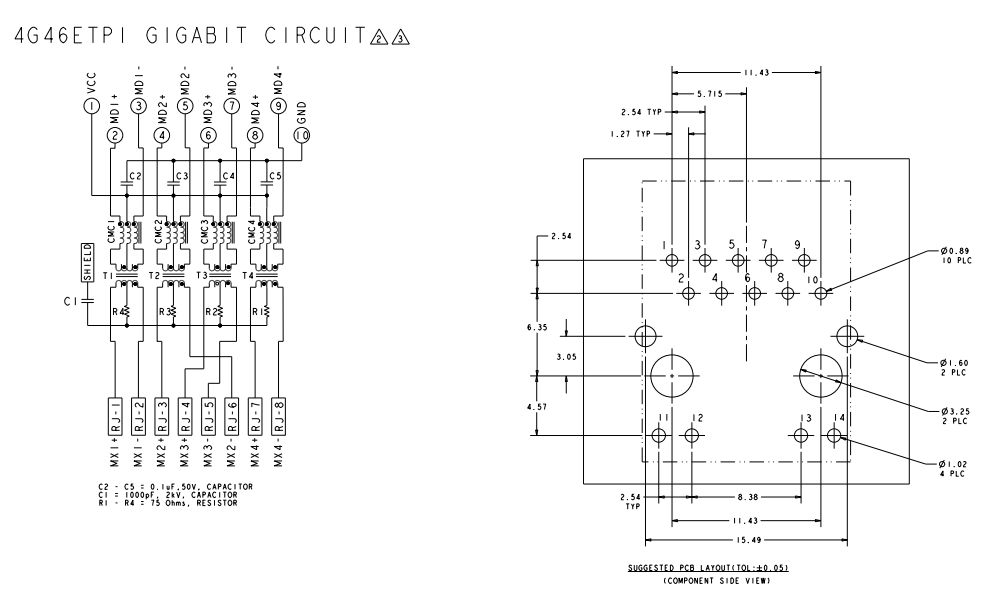

1-1840472-4 Drawing:



1-1840472-4 Gigabit Vertical RJ45 Socket 1X1 Modular Jack,Top Entry Shielded w/LED



1-1840472-4 Gigabit Vertical RJ45 Socket 1X1 Modular Jack,Top Entry Shielded w/LED

1-1840472-4 Gigabit Vertical RJ45 Socket 1X1 Modular Jack,Top Entry Shielded w/LED

1-1840472-4 Gigabit Vertical RJ45 Socket 1X1 Modular Jack,Top Entry Shielded w/LED
