LPJ0092CNL 1 x 10/100 Mbit Ethernet Rj45 XFATM10A-COMBO1-4MS / XFATM10A-C1-4MS

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LPJ0092CNL 1 x 10100 Mbit Ethernet Rj45 XFATM10ACOMBO14MS XFATM10AC14MS
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : XFATM10A-COMBO1-4MS

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 250000-320000/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Part Number : XFATM10A-COMBO1-4MS

Equivalent : LPJ0092CNL

I/O : 10/100 Ethernet

Samples : Available

Contact Now

1. Ethernet 10/100base-T Connectivity

2.1X1 Tab-down XFATM10A-COMBO1-4MS

3.Hi-pot: 1500Vmrs Min

4. 21.30 length RJ45 Magjack

XFATM10A-COMBO1-4MS / XFATM10A-C1-4MS

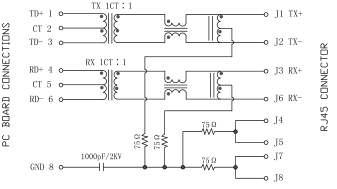

EleElectrical Specifications @25℃ 1.Turns Ratio: TX=1CT:1 RX=1CT:1 2.Inductance: 350uH MIN @100KHz,100mVrms,8 mA DC bias 3.Insertion Loss: 1～65MHz:-1.0dB MAX 4.Return Loss(dB MIN): 1～30MHz:-18 40MHz:-16 50MHz:-12 60MHz:-10 5.Crosstalk(dB MIN): 30MHz:-40 60MHz:-35 100MHz:-30 6.CMR:(dB MIN): 30MHz:-30 60MHz:-20 100MHz:-20 7.Hipot: 1500Vrms
