99961101-01 USB2.0 A Type Connector Right Angle RoHS , LPUSB1001

Name: 9996110101 USB20 A Type Connector Right Angle RoHS LPUSB1001
Brand: LINK-PP
Price: 0.11 USD

Brand Name : LINK-PP

Model Number : 99961101-01

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Specifications : 99961101-01

Corss Part : LPUSB1001

Orientation : 90° Angle (Right)

Port : 1x1

CONTACT CURRENT RATING : 1Amp

Samples : Free Available

Contact Now

99961101-01 USB2.0 A Type Connector Right Angle RoHS , LPUSB1001

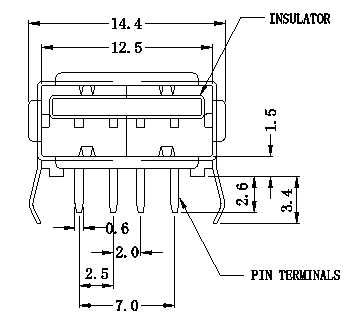

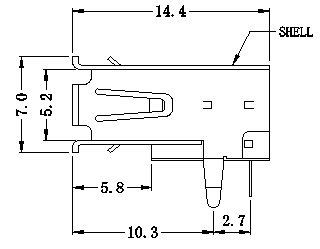

MATERIAL:
PIN TERMINAL : PHOSPHOR BRONZE SELECTIVE GOLD PLATED
(GOLD ON MATING SIDE & TIN ON SOLDERING SIDE)
INSULATOR : PBT, UL 94V-O
SHELL : BRASS, NICKEL PLATED

ELECTRICAL DATA:
CONTACT CURRENT RATING : 1 Amp
DIELECTRIC WITHSTAND VOLTAGE : AC 750V r.m.s
INSULATION RESISTANCE : 1000 MEGAOHMS MIN
CONTACT RESISTANCE : 30 MILLIOHMS
DURABILITY : 3000 Mating Circles
ENVIRONMENTAL DATA:
OPERATING TEMP RANGE : -40℃ TO +80℃

99961101-01 USB2.0 A Type Connector Right Angle RoHS , LPUSB1001
