LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LPJ19618ABNL Power SMT Rj45 1x 10100BT With LED Shielded POE IEEE8023af
Brand: LINK-PP
Price: 0.09 USD

Brand Name : LINK-PP

Model Number : LPJ19618ABNL

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : 110PCS/Reel,7Reels=770PCS=10KG=35.5*35.5*35cm/Carton

Specification : LPJ19618ABNL

Part Number : LPJ19618ABNL

Indicators : LED Available

Ethernet : 10/100Mbps Power Over Ethernet

Mounting : SMD

Samples : Free

Contact Now

LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af

SMT Rj45 Power Over Ethernet IEEE802.3af

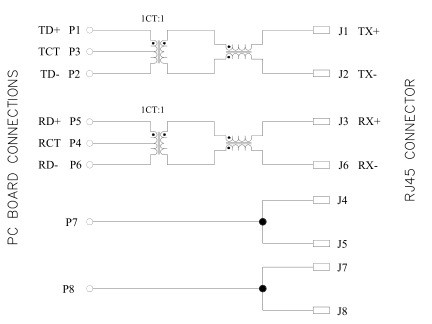

ELECTRICAL SPECFICATIONS @25℃ 1.Turn Ratio(±3%): TX=1CT:1 RX=1CT:1 2.Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias 3.DCR: 1.2Ω MAX 4.Insertion Loss: -1.0dB MAX @ 1-100MHz 5.Return Loss: -16dB MIN @ 1-30MHz -14dB MIN @ 30-60MHz -10dB MIN @ 60-80MHz 6.Cross talk: -40dB MIN @ 1-30MHz -35dB MIN @ 30-60MHz -30dB MIN @ 60-100MHz 7.Common Mode Rejection: -35dB MIN @ 1-100MHz 8.Hipot Test: 1500Vrms 9.Operating Temperature Range: -40℃ TO +85℃.

Product Tags:

rj45 power over ethernet
