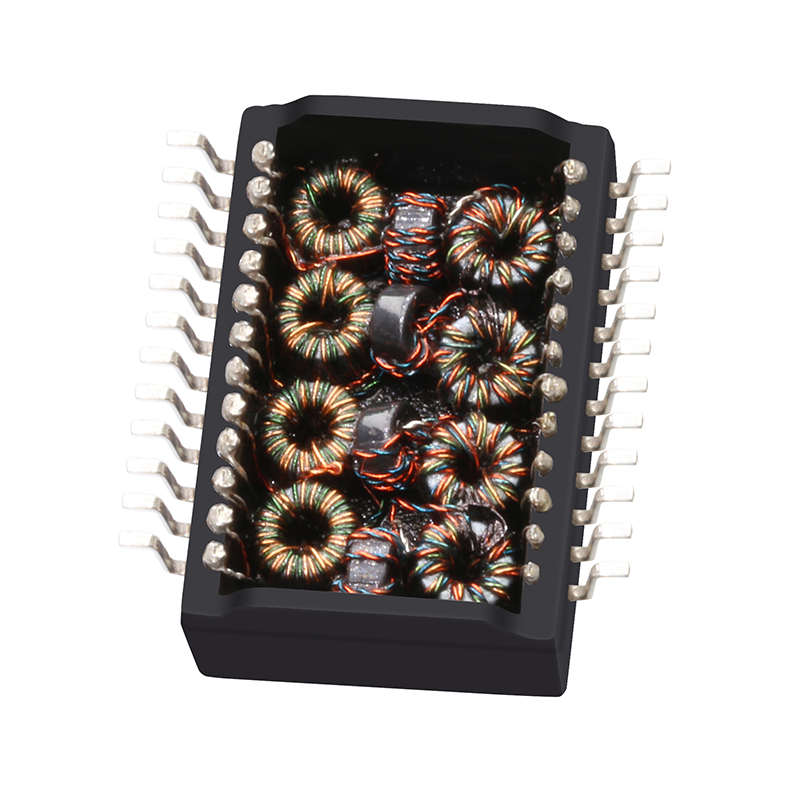

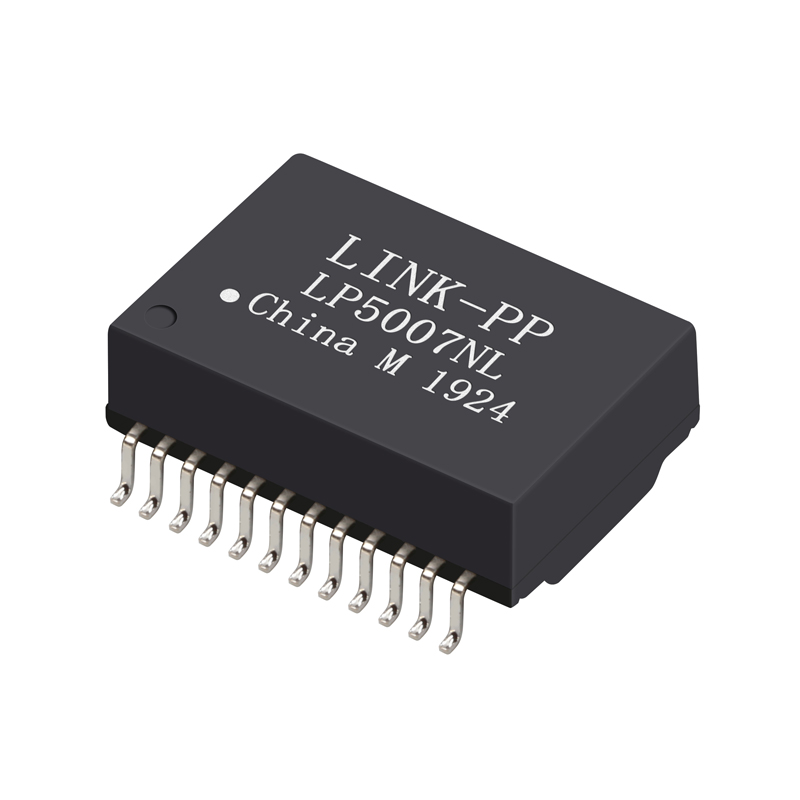

30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL

  • 1
  • 2

Brand Name : LINK-PP

Model Number : LP5007NL

Certification : UL,RoHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

Item : 30FB-22NL

Cross P.N : LP5007NL

Pin No : 24 pins

Series : Single Port GigE Transformer

Termination Style : SMD/SMT

Isolation Voltage : 1500V

Samples : Free Offer

Cross Part : 30FB-22NL = LP5007NL

Lifecycle : More than 20Years

Contact Now

HX5004NL 1000Base-T Magnetic Transformer Cross By LP5007NL



Features

■ Ethernet Magnetic Transformers LP5007NL Equivalent to 30FB-22NL
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables


30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL

Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature
.................................. -40° C to +85 °C

30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL


Mfr Package Description
ROHS COMPLIANT
REACH Compliant
Yes
EU RoHS Compliant
Yes
Status
Active More than 20 Years
Transformer Type
DATACOM TRANSFORMER
Application
LAN; 10/100/1000 BASE-T; ETHERNET
Isolation Voltage
1500.0 V
LINK-PP Cross
LP5007NL Series  Equivalent Cross
File Available
Datasheet / PDF , 3D Step / IGS
Manufacturer Series
PT61020EL  Cross Pin to Pin Analogue
Mounting Feature
SURFACE MOUNT
Number of Functions
4
Operating Temperature-Min
-40.0 Cel
Operating Temperature-Max
85.0 Cel
Packing Method
TAPE & REEL 350pcs/Reel
Physical Dimension
L17.62XB12.2XH6.0 (mm)
Primary Inductance
350.0 µH
Terminal Finish
TIN
Turns Ratio (Np:Ns)
1CT:1; 1CT:1
Height
6.0 mm
Length
17.62 mm
Width
12.2 mm
Additional Feature
HIGHT DIMENSION INCLUDES TEMINAL ALSO
