XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c

Name: XRJDS22881 Stacked RJ45 Modular Jack 10100 BaseT 2x2 Port 8p8c
Brand: LINK-PP
Price: 0.11 USD

Buy cheap XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c product

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,RoHS,Reach,ISO

Model Number : XRJD-S-22-8-8-1

MOQ : 50/500/1000/60K

Price : $0.11-$24

Packaging Details : Tray

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Product # : XRJD-S-22-8-8-1

Made In China : SM-LPJE107XAGNL

Shielded : Shield With LEDs

Application : Telecome Equipments

Mounting Orientation : Side Entry (Right Angle)

Samples : Available

Contact Now

XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c

Quick Details

1.Cat5/5e

2.2x2 Tab-down

3.Through hole RJ45 modular jack

4.27.9 mm length RJ45 Magjack
NOTES:
MACHANICAL:
1.HOUSING MATERIAL :GLASS FILLED POLYESTER OR HIGH TEMP. UL94V-0.
2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.35mm.
3.PLATING :CONTACT AREA-SELECTIVE GOLD PLATING.
TAILS-PLATED TIN OVER NICKEL.
4.OPERATING LIFE :750 CYCLES MIN
5.PCB RETENTION PRE-SOLDER :1 LB MIN
6.PCB RETENTION POST-SOLDER :10 LBS MIM
7.LED SIZE :3.2*2.0*4.0*P=2.29mm
ELECTRICAL:
1.VOLTAGE RATING :125VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :50 MILLIOHMS MAX.
4.INSULATION RESISTANCE :1000MEGOHMS MIN @ 500V DC.
5.DIELECTRIC STRENGTH :1000V AC RMS 60Hz. 1MIN.
ENVIRONMENTAL:
1.STORAGE :-40℃ +85℃.
2.OPERATION :-40℃ +85℃.
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.

XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c

Product Tags:

stacked rj45 connectors

modular jacks rj45

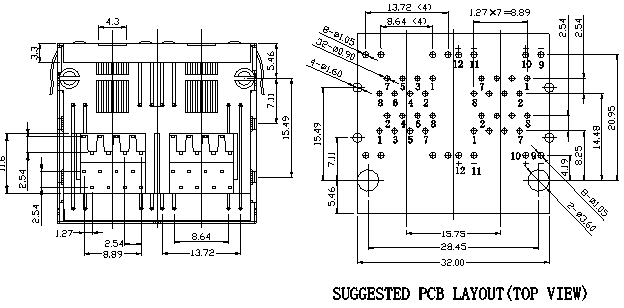

XRJD-S-22-8-8-1 Stacked RJ45 Modular Jack , 10/100 Base-T 2x2 Port 8p8c Images
