Gigabit L22H001-L 2.5G Base-T Single Port Ethernet LAN Filter PoE 60W

  • 1
  • 2
  • 3

Brand Name : LINK-PP

Model Number : L22H001-L

Certification : UL,RoHS,Reach,ISO

Place of Origin : China

MOQ : 400/2000/10K/25K

Price : $0.06-$3.2

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3KK/Month

Delivery Time : Stock

Packaging Details : T&R

p/n : L22H001-L

Interface : 2.5G Base-T

pins : 24

Alternative : L22H001-L => LPxxxNL

Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet

Measure : L18.10XB16.00XH6.20 (mm)

Samples : Free

Mounting : SMD

Contact Now

Gigabit L22H001-L 2.5G Base-T Single Port Ethernet LAN Filter PoE 60W



SPECIFICATION:
1 Designed for Ethernet 2.5G Base-T,Single port applications.
2 Supports 4 pairs of category 5 UTP cable.
3 Cable interface for isolation and low common mode emissions.
4 Design to meet IEEE 802.3 with 720mA balanced current.
5 Compliance with ROHS&Halogen Free requirements.
6 Operating and Storage Temperature
7 Moisture Sensitivity Level(MSL): 2a
   Operating Temperature : 0°C to +70°C
   Storage Temperature : -25°C to +105°C



Application:

1 RapidIO Products

2 SCSI Products

3 DSP Boards

4 Flat Panel Displays



Specifications L22H001-L
speed 2.5G Base-T
Pins 24
Height(mm) 6.20 mm
Length(mm) 18.10 mm
Width(mm) 16.00 mm
REACH Compliant Yes
EU RoHS Compliant Yes
Transformer Type DATACOM TRANSFORMER
Application GENERAL PURPOSE
Mounting Feature SURFACE MOUNT

Gigabit L22H001-L 2.5G Base-T Single Port Ethernet LAN Filter PoE 60W

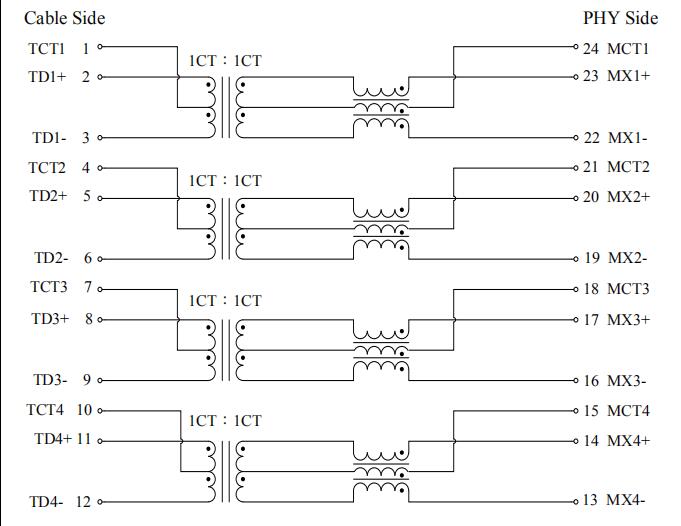

Electrical Specifications @25℃ Type : Balance low pass 100Ω impedance
Insertion loss : 1-50MHz -0.5 dB Max
50-125MHz -1.0 dB Max
125-200MHz -2.0 dB Max
Return loss : 1~40MHz -20 dB Minload 100Ω
40-200MHz -20+15*log(Freq MHz/40MHz) dB Minload 100Ω
Reflected CM to Diff Conversion(REF) 1MHz -30 dB Min
50MHz -30 dB Min
100MHz -27 dB Min
200MHz -24 dB Min
CM to DM Conversion(REF) 1-125MHz -35 dB Min
Reflected Diff to CM Conversion(REF) 1-10MHz -48 dB Min
10-200MHz -48+19*log(Freq MHz/10MHz) dB Min
CM to CM Attenuation (REF) 1-200MHz -25 dB Min
Cross Talk (REF) 1-125 MHz -30 dB Min
125-200 MHz -25 dB Min
Inductance @ 100KHz, 0.1V, 8mA DC BIAS 180uHMin
HiPot Test @ 1500 Vrms
Turns Ratio @ 1:1±5%
