L22H002-L 5G Base-T Gigabit Single Port Ethernet LAN Filter PoE 60W

SPECIFICATION:
1 Designed for Ethernet 5G Base-T,full Single port applications.
2 Supports 4 pairs of category 6 or greater cable.
3 Cable interface for isolation and low common mode emissions.
4 Designed to meet IEEE 802.3 with 720mA balanced current.
5 Compliance with RoHS&Halogen Free requirements.
6 Operating and Storage Temperature

   Operating Temperature : 0°C to +70°C
   Storage Temperature : -25°C to +105°C
7 Moisture Sensitivity Level(MSL):2a


Application:

1 Frame Grabbers

2 Computer Terminals

3 Computer Motherboards

4 Workbenches and Workstations (Industrial)

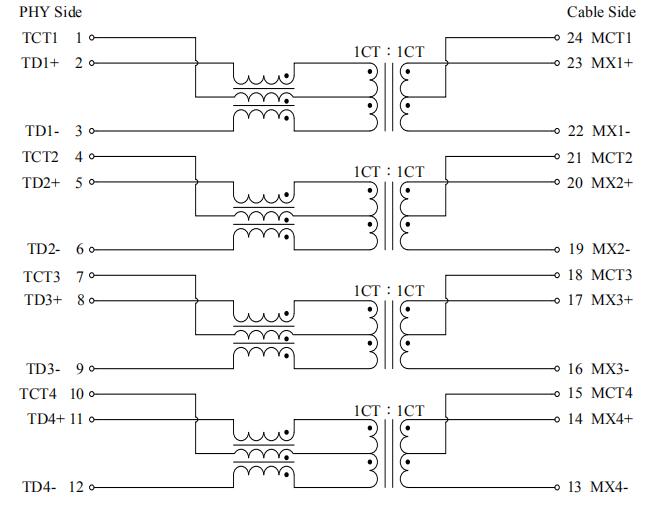

1.Electrical Specifications @25℃
   Type : Balance low pass 100Ω impedance
2.Insertion Loss
   1-50MHZ          -0.5 dB Max
   50-125MHZ      -1.0 dB Max
   125-300MHZ    -2.0 dB Max
3.Return Loss
   1-50MHz          -20 dB Minload 100Ω
   50-200MHz      -20+8*log(Freq MHz/50MHz) dB Min load 100Ω
   200-300MHz    -15+30*log(Freq MHz/200MHz) dB Min load 100Ω
4.Reflected CM to Diff Conversion (REF)
   1MHZ              -30 dB Min
   50MHZ            -30 dB Min
   100MHZ          -27 dB Min
   200MHZ          -24 dB Min
   300MHZ          -22 dB Min
5.CM to DM Conversion(REF)
   1-50MHZ         -35 dB Min
   125MHZ          -30 dB Min
   200MHZ          -27 dB Min
   300MHZ          -24 dB Min
6.Reflected Diff to CM Conversion (REF)
   1-10MHZ         -48 dB Min
   10-300MHZ     -48+19*log(Freq MHz/10MHz) dB Min
7.CM to CM Attenuation (REF)
   1-200MHZ       -25 dB Min
   200-300MHZ   -20 dB Min
8.Cross Talk (REF)
   1-125MHZ       -30 dB Min
   125-200MHZ   -25 dB Min
   200-300MHZ   -25 dB Min
9.Inductance

   @ 100KHz, 0.1V, 8mA DC BIAS 160uHMin
10.HiPot Test
   @ 1500 Vrms
11.Turns Ratio
   @ 1:1±5%
